​What are These Explosive Devices That russian Aircraft Could Drop Into the Sea on the Route of Grain Corridor

1834

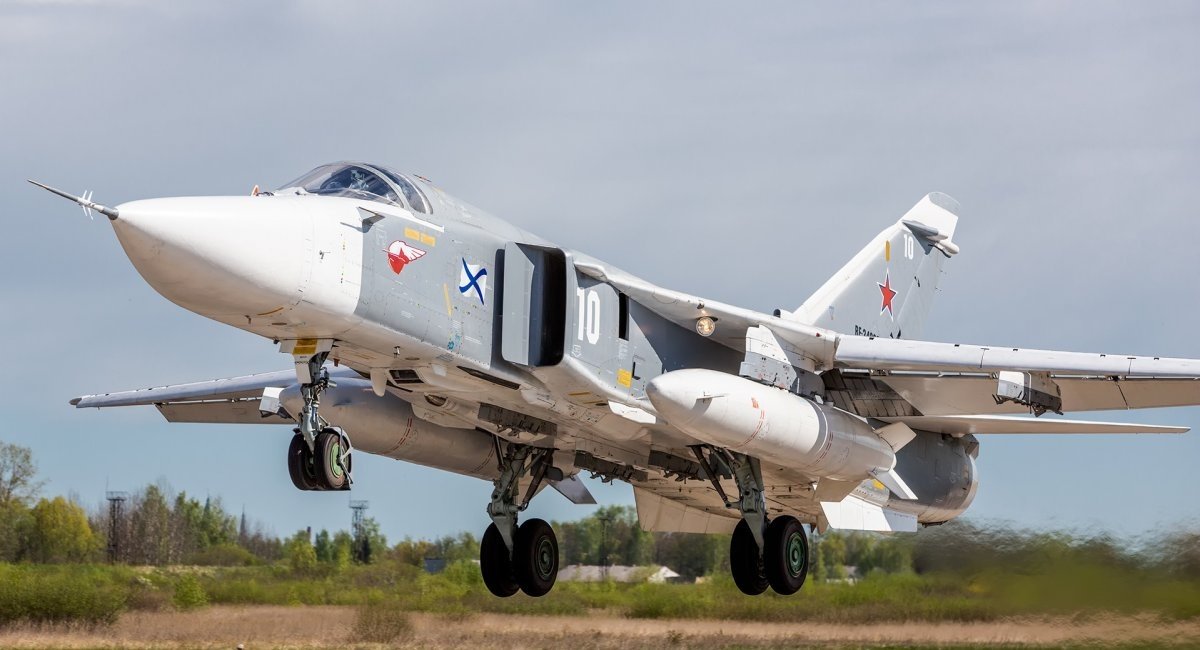

Su-24M aircraft of russian Navy’s naval aviation / Illustrative photo from open sources
Su-24M aircraft of russian Navy’s naval aviation / Illustrative photo from open sources

Naval mines can be laid not only from ships or submarines, but even from airplanes

On October 25, 2023, the spokeswoman of the Joint Press Center of the Operational Command South Nataliya Gumenyuk reported on the air of the telethon that the russian invaders began to drop "unknown explosive devices" from their planes along the route of civilian shipping, which takes place within the framework of the "grain corridor". This was a detail of the overall picture, because during the past day, the occupiers dropped in the South 35 aerial weapons from their planes, which included cruise missiles, guided aerial bombs, and the same "unknown explosive devices".

Special attention should be paid to reports of unknown explosives being dropped from airplanes in the area of the passage of grain ships and to analyze what kind of devices these could be.

Read more: ​Two Ukrainian Ships Are Participating in Multinational Exercises in Great Britain
What are These Explosive Devices That russian Aircraft Could Drop Into the Sea on the Route of Grain Corridor, MDM-2 mod.1 naval bottom mine, training mock-up, Defense Express

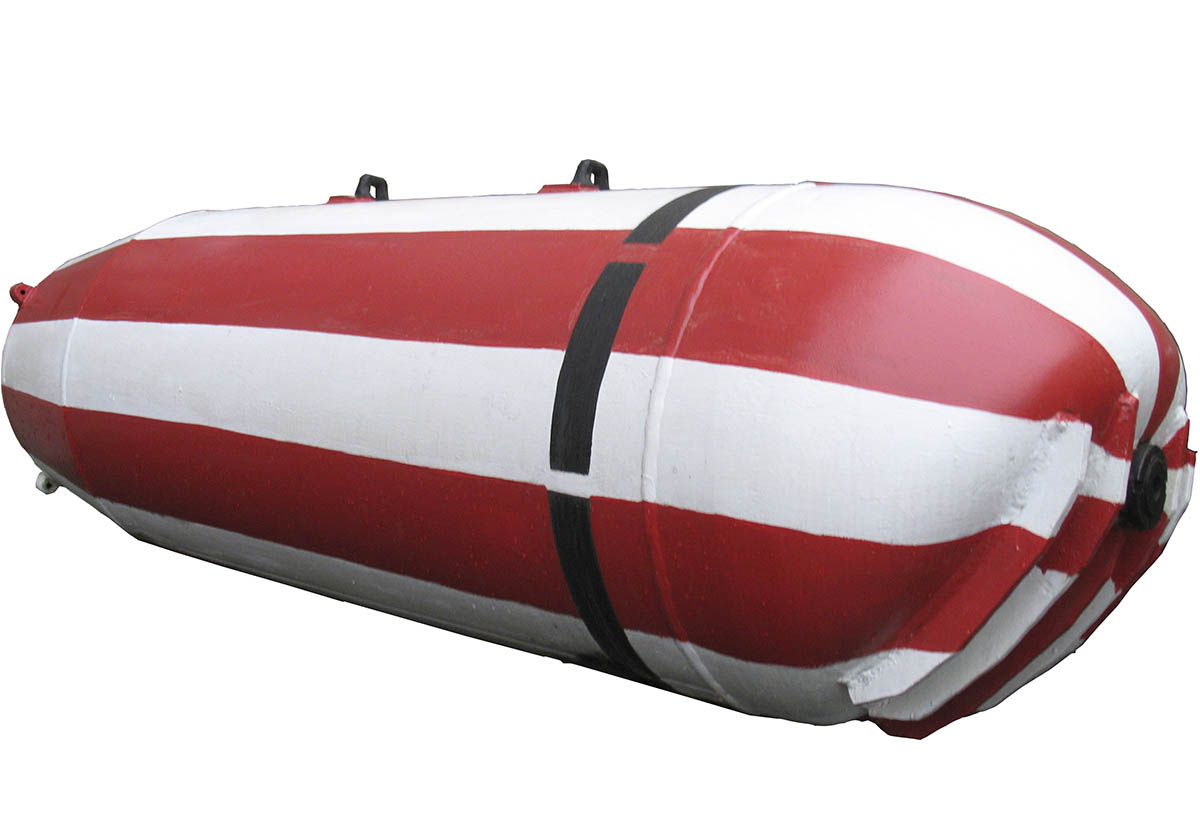

MDM-2 mod.1 naval bottom mine, training mock-up / Photo credit: Rosoboronexport

It is unlikely that we were talking about training aerial bombs or something like explosive packages. Obviously, the russians could use there things that could be classified as explosive devices capable of damaging civilian grain ships (even the smallest of which can be larger than frigates and other large ships of the Black Sea Fleet of the russian federation.

Therefore, most likely, in this story, the russians could drop sea bottom mines of the MDM type of 533 mm caliber from their planes, are almost universal in terms of using carriers for their deployment.

What are These Explosive Devices That russian Aircraft Could Drop Into the Sea on the Route of Grain Corridor, MDM-2 mod.1 naval bottom mine, Defense Express

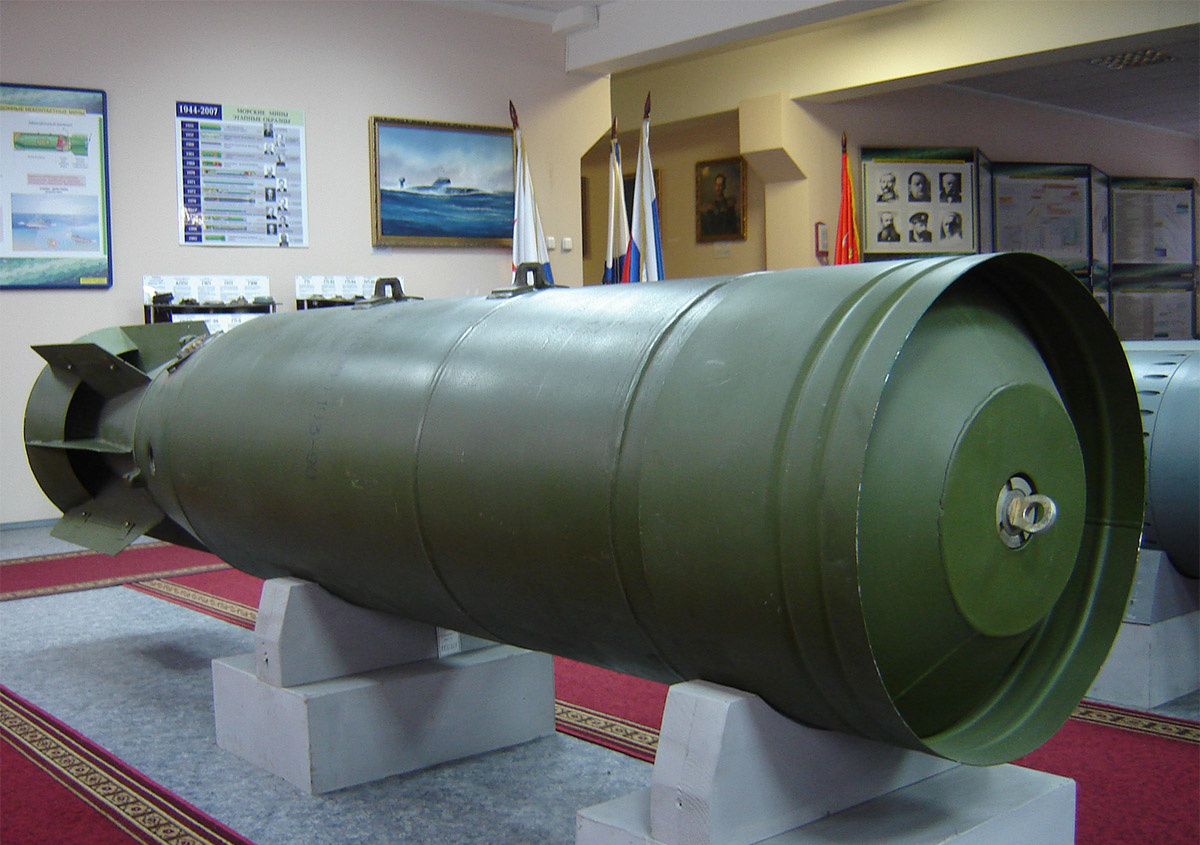

MDM-2 mod.1 naval bottom mine / Photo credit: Rosoboronexport

The main problem is that it is really an explosive device that has to be simply laid on the bottom and detonated as ships or ships pass, making sea bottom mines a difficult target to combat even for modern minesweepers.

If we talk more specifically about the types of russian naval bottom mines, then here we have three samples. Basic - MDM-2 mod.1 naval bottom mine with a body length of 2.25 meters, weight - 1300 kg, warhead capacity - 1030 kilograms in TNT equivalent, placement depth - up to 120 meters, carrier speed during placement - up to 1000 km/h . The MDM-5 mod.1 naval bottom mine, which can also be dropped from aircraft, has similar parameters and characteristics.

What are These Explosive Devices That russian Aircraft Could Drop Into the Sea on the Route of Grain Corridor, MDM-3 mod.1 naval bottom mine, Defense Express

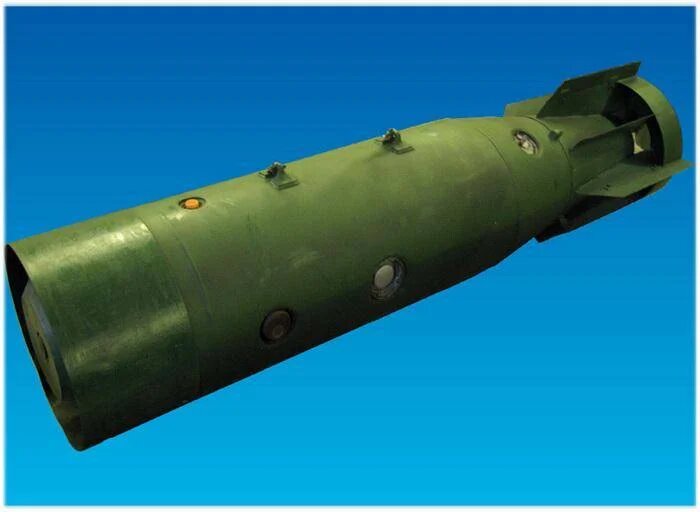

MDM-3 mod.1 naval bottom mine / Open source photo

It is also worth highlighting the MDM-3 mod.1 naval bottom mine, which, in fact, is a reduced version of the MDM-2 mod.1. The MDM-3 mod.1 naval mine has a body length of only 1.5 meters with a diameter of 450 mm, weight - 590 kg, power of the warhead - 300 kilograms in TNT equivalent, placement depth - up to 30 meters.

If you take into account the appearance of all the mentioned mines, it becomes more clear why the official message spoke about "unidentified explosive devices". Because from the outside it could look like ordinary unguided aerial bombs.

What are These Explosive Devices That russian Aircraft Could Drop Into the Sea on the Route of Grain Corridor, MDM-3 mod.1 naval bottom mine, training mock-up, Defense Express
MDM-3 mod.1 naval bottom mine, training mock-up / Photo credit: Rosoboronexport
